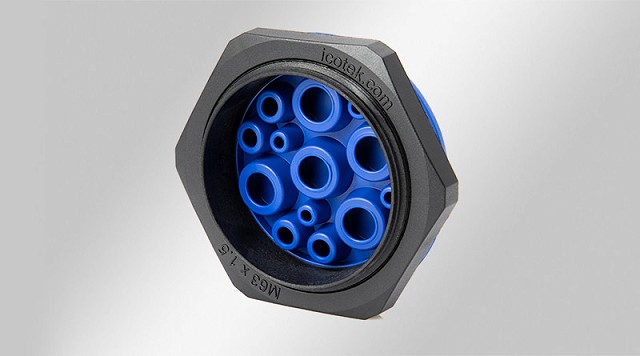

KEL-DPZ-HD hygienic multi-membrane round cable entry plates with metric threads M32 - M63 / IP66 / IP68, FDA compliant.
Now available in New Zealand from ECS.
The new icotek KEL-DPZ-HD cable entry plates have been developed for installation in food processing and packaging machines.
During the development according to the Hygienic Design guidelines, care was taken to ensure that the visible side of the cable entry plate are free of dirt-collecting recesses. The surface was kept very smooth (Ra = 0,421 μm acc. to ISO 4287). The outer contour has a radius of 6 mm instead of the required 3 mm. In addition, the KEL-DPZ-HD uses an FDA-compliant elastomer in accordance with food approval 1935/2004/EG and (EU) 10/2011. The signal colour blue ensures a clear visual colour recognition.
The cable entry plates are designed to route several cables and hoses with a diameter range of 3.2 mm to 22.2 mm and seal them acc. to IP65/66/67/68. A significant advantage over cable glands is the significantly higher cable density and the flexibility of the cable diameter range. The fixation is very simple with the locknut.
Advantages & benefits
- Elastomer of the cable entry plate made of material according to 1935/2004/EG, (EU) 10/2011
- FDA compliant
- Developed according to hygienic design guidelines (EHEDG)
- Hygienic design – free of dirt-collecting recesses
- Ecolab certified
- Very flat design
- Very smooth surface (Ra = 0,421 μm acc. to ISO 4287)
- Very fast assembly
- Cable diameter 3,2 – 22,2 mm
- Very large sealing areas and clamping areas
- High cable density
- Dual sealing of cables (IP66/IP68)
- Suitable for metric cut-outs
- Reproducible cleaning process
- Very low moisture absorption
- High resistance to aromatic solvents, oils, greases, mineral products
- No corrosion possible because plastics have been processed
- Maintenance free
- Hexagonal locknut included in the delivery
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65, IP66, IP67, IP68 |
| Material | Elastomer Base frame: Polyamide |
| Flame class | UL94-HB |
| Operating temperature | -40 C° to 80 C° |
| Properties | silicone free, halogen free, resistant to oil and mould, higher chemical resistance |
